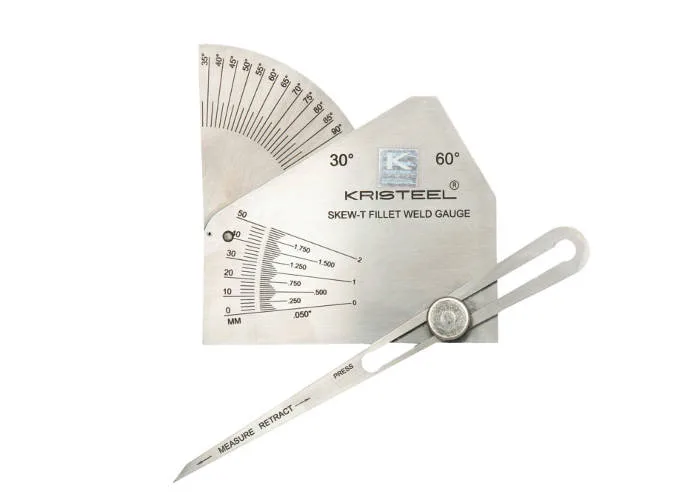

Skew T Fillet Weld Gauge
SKU: Model - STFWG
MATERIAL:
Stainless Steel (Rulers in 1.0 thick and Base in 2.0 thick)
RANGE: Fillet leg length 0-50 mm and angles 30° to 90°
LEASTCOUNT: 2 mm and 2.5°
FINISH: POLISHED
RANGE: Fillet leg length 0-50 mm and angles 30° to 90°
LEASTCOUNT: 2 mm and 2.5°
FINISH: POLISHED
USES:
To check fillet weld leg length of skewed members or members at 90 degrees, also check members angles from 30 to 90-degree pointer is adjustable in length to set as per welded geometry. All markings are permanent etched and in black colored for easy looking.
FEATURES :
–
IMPORTANT :
–
PACKING :
Each gauge is packed in PVC pouch with card paper box.
