Fuel cells convert chemical energy into electricity through a reaction between hydrogen and oxygen, but the stack only works because dozens of individual components cooperate inside it. In this article, we’ll explain the bipolar plate in fuel cell in simple terms, covering its function, materials, and importance. A weak or poorly designed plate can drag down efficiency across an entire stack, no matter how good the membrane or catalyst layer is. This guide is written for engineers learning fuel cell fundamentals, engineers evaluating stack components, and anyone curious about how the technology actually holds together.

What Is a Bipolar Plate in a Fuel Cell?

A bipolar plate sits between two adjacent cells in a fuel cell stack, acting as the shared boundary that connects them. It touches the anode of one cell on one side and the cathode of the next cell on the other side. Its basic role covers two jobs at once: carrying electric current from one cell to the next, and channeling hydrogen and air through etched flow paths across the membrane surface. Without this dual function, individual cells would sit isolated, unable to combine their voltage into a usable stack output.

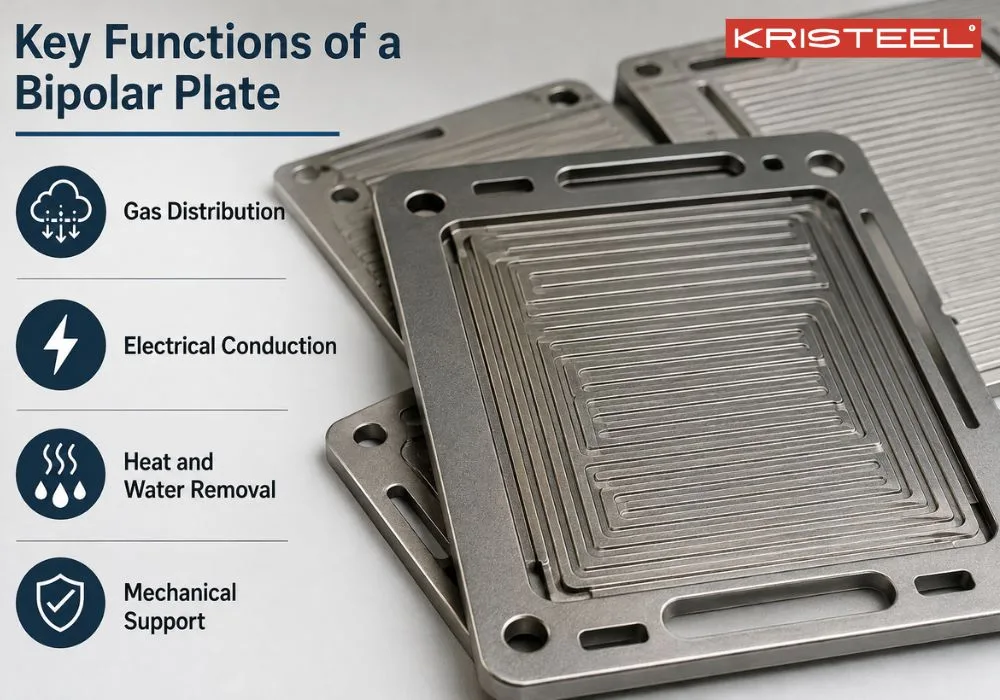

Key Functions of a Bipolar Plate

A bipolar plate does more than just sit between cells. It performs four distinct jobs, and each one affects how well the stack runs.

• • Gas Distribution: The flow channels are utilized to allow the distribution of the gases (hydrogen and oxygen) over the active area to prevent localized gas scarcity or flooding.
  • Electrical Conduction: The connection of the adjacent cells to conduct the current that develops throughout the stack with the least loss of electrical resistance.
  • Heat and Water Removal: This involves removing heat and water, including by-product water, while dissipating excess heat. Effective water and thermal management help prevent membrane degradation and gas flow channel clogging.
  • Mechanical Support: Offers a sturdy mechanical support for high stack compression, decreasing the possibility of warping or cracking of plates under pressure. This is called a support structure.

Materials Used to Make Bipolar Plates

The choice of bipolar plate material is strongly related to the fuel cell efficiency, structural durability, and total service life. The three families of materials are those most commonly used by manufacturers, each family having a different balance between conductivity, weight and corrosion resistance in order to meet the particular needs of an operation.

• • Graphite Plates: Ensure good electrical conductivity and very good corrosion resistance for stationary systems. High weight and brittleness limit their employment in automotive or mobile applications.
  • Metallic Plates (Stainless Steel & Titanium): These plates are ultra-thin and lightweight profiles and can be easily mass produced by stamping. However, they require protective coatings to withstand acidic fuel cell environments.
  • Composite Plates: This is the best of both worlds. Graphite or carbon fibre is combined with polymer binders to create a lightweight, robust plate with good natural corrosion resistance.

Bipolar Plate Design and Flow Field Patterns

The bipolar plates have etched flow field channels that spread hydrogen and oxygen over the fuel cell membrane. The channels are designed in such a manner that the distribution of gases to the reaction sites is affected, with a direct influence on system pressure, water management, and thermal stability.

• • Serpentine Channels: The gas flows in a continuous winding channel to maximise the active area coverage, but this results in a higher pressure drop along the flow line.
  • Parallel Channels: Have parallel flow lines with lower total pressure drop. Greater danger of uneven gas distribution if individual channels clog
  • Interdigitated Channels: These use dead-end channels to force the gas directly through the porous electrode layer. This greatly improves water removal, but requires more pumping power.
  • Impact on Uniformity: Poor channel selection generates unequal reactant distribution on the plate, hot areas, lower power, and more rapid stack deterioration.

Why Bipolar Plates Matter for Fuel Cell Performance

The bipolar plate in fuel cell stacks isn’t a passive spacer. It’s an active component that determines how efficiently gas reaches the reaction sites and how much resistance the current loses as it flows through the stack. A plate with poor conductivity wastes energy as heat instead of delivering it as usable power. A plate with weak corrosion resistance shortens the stack’s operating life and drives up replacement cost. Plate quality and design, in short, connect directly to three things that matter most in any fuel cell system: efficiency, durability, and total cost of ownership.

Conclusion

A bipolar plate is critical to fuel cell performance, distributing fuel, conducting current, managing heat, and supporting the stack structure. Because any minor defect degrades the entire system, partnering with a precision manufacturing leader like Kristeel ensures accurate component tolerances and superior conductivity, ultimately maximizing long-term stack efficiency and delivering unmatched operational reliability.
